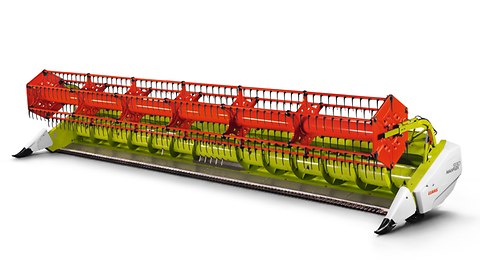

MAXFLEX cutterbars.*
The 930 to 560 MAXFLEX cutterbars offer you the perfect solution for harvesting crops close to the ground. Their unique multicrop capability for grains and soybeans also results in high flexibility and makes them extremely user-friendly when harvesting a variety of different crops.
- Use
Legumes, such as soybeans, peas and lentils, grow in pods close to the ground. It is therefore important to cut the crops as close to the ground as possible at harvest time. In this way, every last pod gets picked up by the machine and cutterbar losses are effectively prevented.
- Technology
- 180 mm flexible knife bar
- Electrohydraulic system allows flexible knife bar to be set to rigid configuration (for use in grains) and returned to flexible mode again (soybean harvesting) via the multifunction control lever or directly on the cutterbar
- Cutting angle adjustment for different conditions via HP feeder housing and V feeder housing
- Stripper bars adjustable from the outside
- Optional grain baffle to avoid bouncing grain loss
- Intake auger height is infinitely adjustable
- LASER PILOT for automatic guidance can be folded and adjusted without tools
- Compatibility with grain thanks to grain sensors and grain cutting system
- Stainless steel bottom plate in central area of cutterbar table
- Automatic parking and transport position
- Automatic operating position
- 180 mm flexible knife bar
Adjustable skids for reliable front attachment guidance and cutting height adjustment
Skids with integrated AUTO CONTOUR system for perfect adaptation to ground contours across entire working width.
For clean cutting, even under adverse conditions (e.g. moist plants, weeds), the short knife guards are open at the front.
Front attachment guidance when harvesting grain can be provided by equipping the left and right sides each with a pair of AUTO CONTOUR sensors.
Short, closed knife guards make it possible to fit crop lifters.
Special long or short crop dividers can deflect upwards.
*Availability varies according to country
