DOMINATOR 370.

Dominates the field.

DOMINATOR 370.

Dominates the field.

CLAAS combine harvesters | DOMINATOR 370.

Advantages for you.

  • MULTICROP hybrid threshing system for optimal adaptability to different crops and harvest conditions
  • Large sieve pan providing large sieve area (compared with competitors)
  • Good straw quality
  • Excellent operating comfort and convenience
  • Familiar and reliable CLAAS technology

Highlights.

DOMINATOR 370
  • 600 mm threshing drum – as found in LEXION C7 and TRION model series
  • 1,420 mm threshing drum width – as found in LEXION and TRION model series
  • 570 mm single rotor for secondary separation – as found in TUCANO and TRION 700 model series
  • MULTICROP threshing system
  • Top unloading with 75 l/s unloading rate
  • Available with all-wheel drive
  • Comfortable cab with CEMIS 700 control terminal


DOMINATOR 370

Threshing.

Conventional threshing system.

  • Conventional, open threshing drum and feeder drum with flat transition
  • Mechanical concave adjustment from the cab
  • Synchronised speed of threshing drum and feeder drum
  • Stone trap ahead of the threshing drum


DOMINATOR 370

Threshing.

Threshing drum speed.

  • Infinitely variable adjustment via switch on armrest
  • Hydraulic threshing drum variator with 2-stage drive
  • Synchronous adjustment of threshing drum and feeder drum
  • High speed range: 450 to 1,000 rpm
  • Low speed range: 200 to 440 rpm
  • Speed range is changed by repositioning the belt onto an adjacent pulley

DOMINATOR 370

Separation.

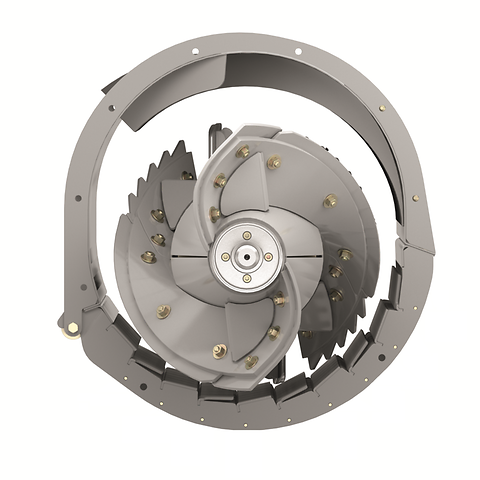

ROTO PLUS secondary separation.

  • Large rotor diameter of 570 mm
  • High centrifugal force, even at low rpm
  • 5 rotor concave segments
  • Wire concaves with MULTICROP capability included as standard equipment
  • Eccentrically mounted rotor loosens the straw mass above and provides effective separation below
  • Returns pan for even feed to sieve pan

DOMINATOR 370

Cab and comfort

Cab and comfort

  • Extremely comfortable and convenient to operate
  • Multifunction control lever
  • ISOBUS-compatible CEMIS 700 display
  • Air conditioning and heating as standard
  • Mechanically suspended operator’s seat with armrest and instructor's seat
  • 3 cameras as standard on unloading tube, rear and grain tank
  • Inspection window for monitoring returns

Technical data.

DOMINATOR

370

Threshing system / width (mm)

1420

Rotor diameter (mm)

570

Grain tank (l)

5800

Engine

Perkins 1106D

Maximum output (kW/hp)

151 / 205
