Camera

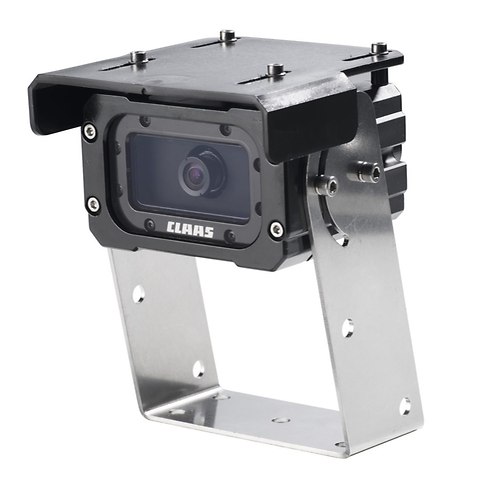

The PROFI CAM 3 colour camera is specifically designed for extreme working conditions. This is the reason for its robust POM polyoxymethylene) housing.
The camera is equipped with a double-glazed front screen for operations in particularly dirty environments. This can be easily replaced by loosening four screws. The screws are secured so that they do not fall out when loosened.
The CCD chip, popular in professional camera technology, quickly adapts to changing light conditions and compensates for backlighting.
Benefits:
- Extremely robust housing
- Easily replaceable front screen (dishwasher-suitable)
- High light sensitivity: 0.05 lux
- Sharp, high-resolution images
- Integrated heating prevents misting and freezing over of lens
- Suitable for cleaning with high-pressure cleaner
- Flexible positioning in PROFI CAM 3 system
Bracket adapted to each attachment position (short or long, machine-specific)
| Specifications: | |
| Size (W x D x H) | 105 mm x 72 mm x 133 mm |
| Operating temperature | -40°C to +85°C |
| Degree of protection | IP6K9K |
| Focal length | 2.5 mm |
| Image sensor | 1/3“ colour CCD |
| Effective pixels | 437 x 582 (PAL) |
| Resolution | 550 TV lines |
| Light sensitivity | 0.05 lux / F 1.4 |
| Shutter speed | 1/50 – 1/100,000th |
| Operating voltage | 10–15 V / 30 V DC |
| Connection lead length | 1.5 m |
| Shock resistance | 30 g |
